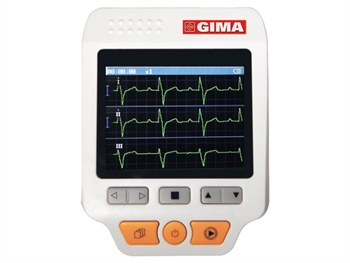

CARDIO-C POCKET ECG - 3 channel
- Small size, light-weight and easy to carry
- One-key measurement
- Clear ECG waveform and interpretation of results on colour dot-matrix TFT 3.5" screen
- Up to 19 types of measurement results
- High capacity built-in memory: 24 hours records storage and review for single channel waveform and 8 hours record storage and review for 3-channel waveforms
- Quick measurement: by built-in metal electrodes, on palm, chest or leg or by external lead wires (needs optional limb and chest electrodes)
- Data management to review or delete data records locally or to upload to PC
Methods of ECG measurements: direct or with lead wires
- Direct on leg
- Direct on chest
- Direct on palm or wrist
- With lead wires, need limb electrodes 33364
- With lead wires, need chest electrodes 33327
Catalog
- One-key measurement
- Clear ECG waveform and interpretation of results on colour dot-matrix TFT 3.5" screen
- Up to 19 types of measurement results
- High capacity built-in memory: 24 hours records storage and review for single channel waveform and 8 hours record storage and review for 3-channel waveforms
- Quick measurement: by built-in metal electrodes, on palm, chest or leg or by external lead wires (needs optional limb and chest electrodes)
- Data management to review or delete data records locally or to upload to PC
Methods of ECG measurements: direct or with lead wires
- Direct on leg
- Direct on chest
- Direct on palm or wrist
- With lead wires, need limb electrodes 33364
- With lead wires, need chest electrodes 33327
Catalog
- Product code: 33245
- Units: 1 pc.
- Specifications:
• Heart rate measuring range: 30 bpm ~ 240 bpm
• Heart rate measuring accuracy: ± 2 bpm or ±2% whichever is greater
• ECG bandwidth: 0.5 Hz ~ 40 Hz
• Internal noise level: = 30µVp-p
• Display scale: 5.0 mm/mV ±10%
• Common-mode rejection ratio (CMRR): = 60 dB
• Waveform sweeping speed: 20 mm/s ±10%
• Input loop current: = 0.1 µA
• Input impedance: = 5 mO
• Power: 4 AA alkaline batteries - 4.4 ~ 6 VDC
• Max average working current: = 160 mA
• Auto power-off: can be adjustable between 1-5 mins
• Low battery indication: 4.4 VDC ±0.2 VDC
• True colour 3.5" TFT display
• Pocket size: 13 x 9.5 x 3.2 cm
• 32 MB memory inside
