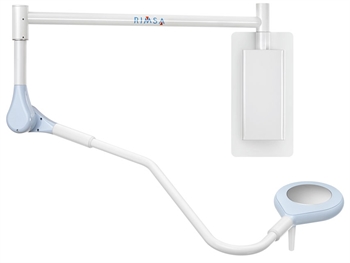

SATURNO OPERATING LED LIGHT - wall
SATURNO is a shadow-less type lamp suitable for small surgery, gynaecology and examination. Available in three versions: mobile with castors, wall and ceiling.
- Light beams are generated from 9 LEDs - 2.5 W each
- Heat is dissipated through aluminium cover reflector.
- Selection of 2 different white light temperatures: 5000 °K and 4500 °K
- Light intensity adjustable at 6 different levels by a key on front membrane
- Luminous intensity 30,000 LUX at 1 m. Diameter of illuminated field 28 cm
- Adjustable friction bearing are mounted on every articulation of the lamp
- Thanks to optical concept, no need to be focus adjusted
Battery group with charger (not included) available on request during the order: 3 hours autonomy, 6 hours recharging.
Catalog
- Light beams are generated from 9 LEDs - 2.5 W each
- Heat is dissipated through aluminium cover reflector.
- Selection of 2 different white light temperatures: 5000 °K and 4500 °K
- Light intensity adjustable at 6 different levels by a key on front membrane
- Luminous intensity 30,000 LUX at 1 m. Diameter of illuminated field 28 cm
- Adjustable friction bearing are mounted on every articulation of the lamp
- Thanks to optical concept, no need to be focus adjusted
Battery group with charger (not included) available on request during the order: 3 hours autonomy, 6 hours recharging.
Catalog
- Product code: 49102
- Units: 1 pc.
- Specifications:
• Light intensity at 1 m distance: 30.000 Lux
• Colour temperature adjustable: 4500/5000 ± 5% K°
• 9 LEDs: 2.5W each
• Average LED life: 50.000 h
• CRI (chromatic rendering Index): 96 Ra
• Light field where the illumination reaches 10% of Ec (d10): Ø 25 cm
• Light field where the illumination reaches 50% of Ec (d50): Ø 12.5 cm
• Depth of illumination IEC 60601-2-41 (L1+L2) at 20% of Ec: 228 cm
• Depth of illumination IEC 60601-2-41 (L1+L2) at 60% of Ec: 136 cm
• Total radiated energy Ec: 105 W/m2
• Diameter of the relfector: 19.5 cm
• Useful lighting surface of the cupola: 65 cm2
• Weight (ceiling, mobile, wall): 12 - 14 - 13 kg
• Power requirements: 100-240V, 50-60Hz
• Minimum height of the room (ceiling version)
• Standards: IEC 60601-1 IEC 60601-2-41, MDD 93/42 CEE, medical device of Class I
• Warranty 12 months - mechanical components warranty 10 years
• Made in Italy
